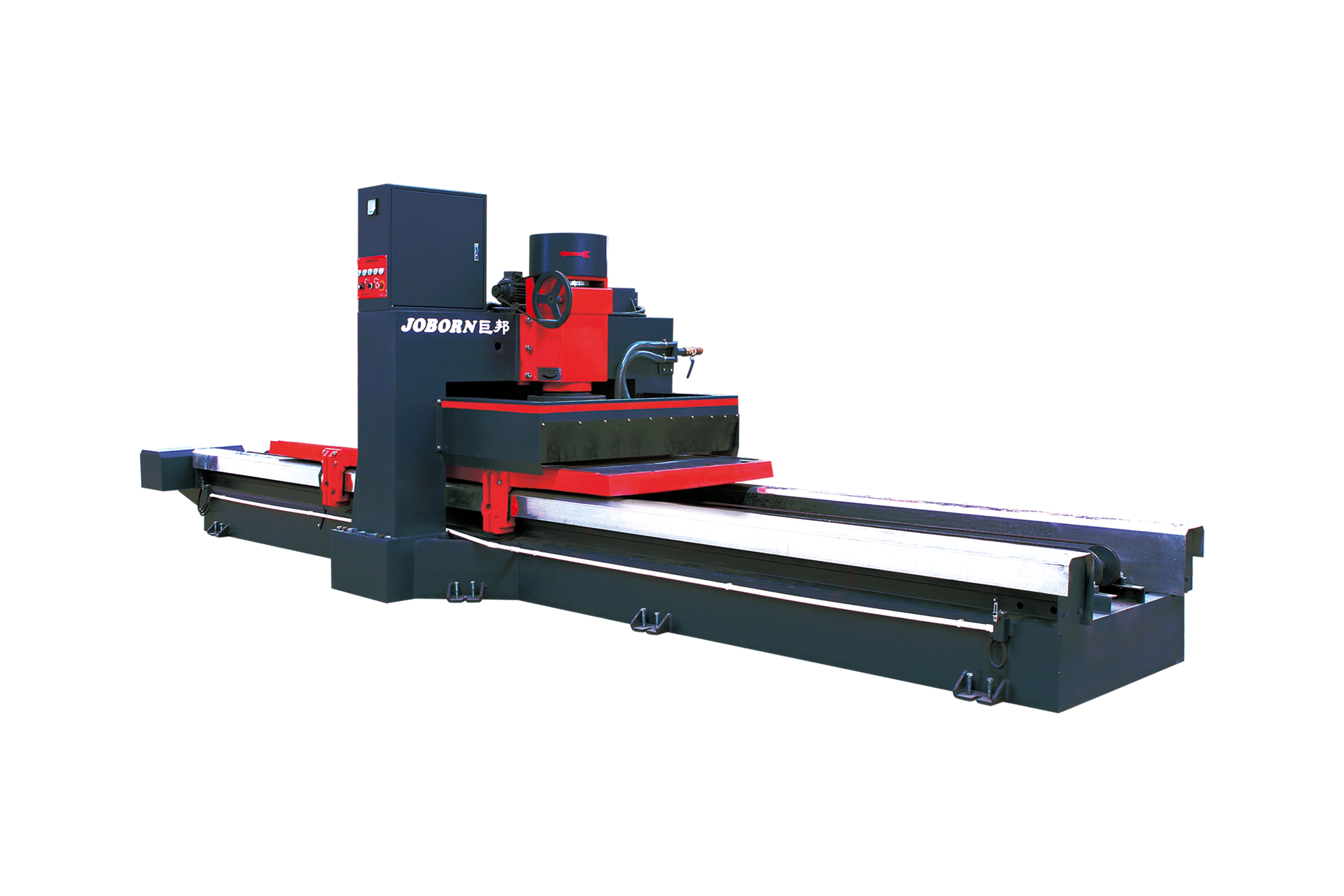

SXA-100L
AUTOMATIC GANTRY TYPE CALIBRATING MACHINE
This machine adopts the structure of gantry type, good rigidity, Calibrating head lifting easy, can be locked when working, prevent shaking. Uses inverter to control worktable left-right feeding, adjusts the speed according to the stone material and machining thickness, automatic work. Thus the whole machine is featured as good performance, high working efficiency, high working precision, high stability, uniform in thickness to suit stone slab calibrating and factory for sheet and clad plate.
龙门式自动定厚机 Automatic gantry type calibrating machine |
名称 | Appellation | Unit | SXA-100L |
刀盘直径 | Calibrating head diameter | mm | 1080 | 1350 |
刀盘升降行程 | Calibrating head lifting stroke | mm | 100 |
工作台尺寸 | Worktable size | mm | 3000×1100 | 3000×1250 |
耗水量 | Water consumption | m³/h | 8 |
主电机功率 | Power of main motor | kW | 18.5 | 22 |
总功率 | Total power | kW | 20.3 | 23.8 |
外形尺寸 | Dimension(LxWxH) | mm | 6800×2150×2100 | 7000×2350×2150 |
总重量 | Weight | kg | 3500 | 4200 |
