Technical DataStructure Characteristics
This machine adopts the structure of gantry type, good rigidity, conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate, make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Data
|

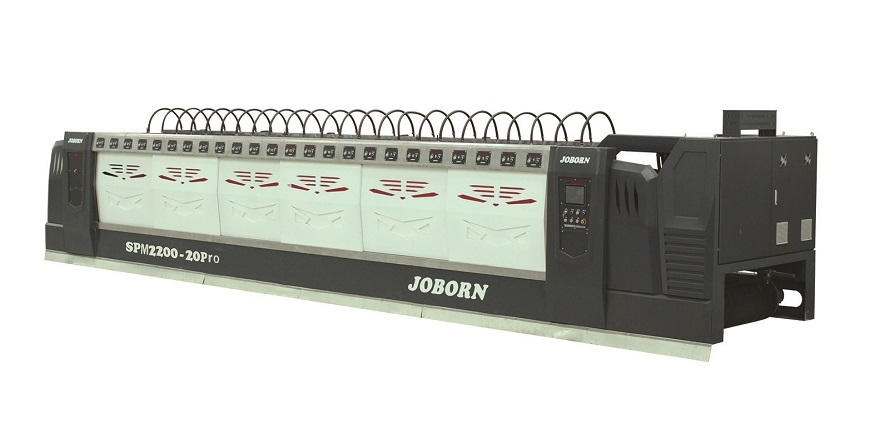

SPM Pro AUTOMATIC POLISHING MACHINE FOR Marble
|
|
Appellation
|
SPM 2200-12Pro
|
SPM 2200-16Pro
|
SPM 2200-20Pro
|
SPM 2200-24Pro
|
|
Max.processing width(Optional) (mm)
|
2200
|
2200
|
2200
|
2200
|
|
Max. processing height (mm)
|
60
|
|
Belt advanced speed (m/min)
|
0～3.5
|
|
Number of grinding head(Optional)(pcs)
|
12
|
16
|
20
|
24
|
|
Water consumption (m³/h)
|
1.5
|
|
Air consumption (m³/h)
|
1
|
|
Power of main motor (kW)
|
11
|
|
Total power (kW)
|
164
|
208
|
252
|
296
|
|
Dimension(LxWxH) (mm)
|
9.5*(2.9~4.3)*3
|
11.5*(2.9~4.3)*3
|
13.5*(2.9~4.3)*3
|
15.5*(2.9~4.3)*3
|
Side beam linear guide
Patented spindle structure.
The best human-computer interaction interface.
Taiwan famous brandpneumatic component.
Using imported and domestic famous brand electical componrnts .
Plate shape detecting device.
Automatic lubrication system.
Horseshoe type for marble .
Roller table(can match)
Overturning table(can match).
