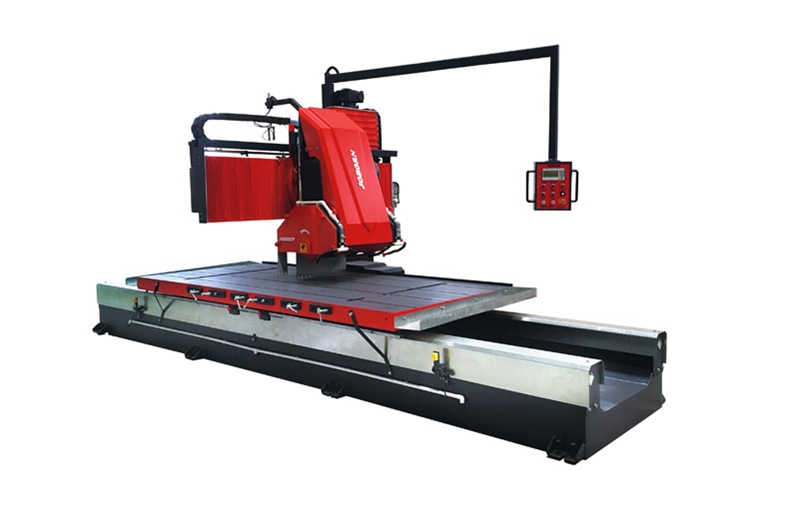

Automatic Profiling Machine_Stone Profiling Machine

Structure Characteristics

This machine automatically track model of curve(straight) line through the fiber optic probe, automatically profiling through diamond circular saws to cut stone with curve(straight) line and craft products, uses inverter to control left-right feeding, adjusts the speed according to the stone material. If choosing rotating worktable, the processing of arc-shaped lines can be done. This machine adopts microcomputer control system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, Roman column, etc.

Note: can modify with CNC system, which removes from the trouble of making the templates, with high automation and high cutting precision.

Technical Data

SQ/PC-1300 Automatic Profiling Machine
Appellation	Unit	SQ/PC-1300
Max. disc diameter	mm	Φ600
Worktable size	mm	3000×1300
Cutter processing range	mm	3000×1300×550
Water consumption	m³/h	6
Power of main motor	kW	15
Total power	kW	19
Dimension(LxWxH)	mm	5300×2300×2520
Weight	kg	4300

Detail Description

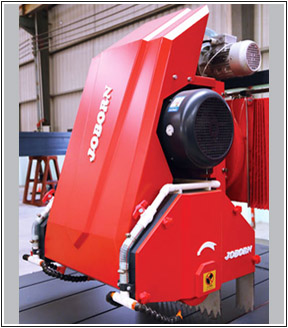

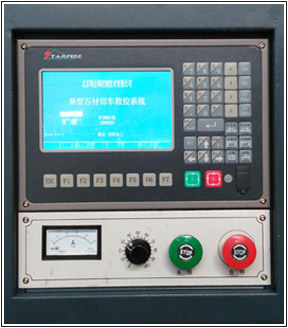

Designed from Italy industrial design profession team, with high face values, and specialty automotive paint and special paint process, multi-channel anti-rust and anti-corrosion treatment, keep your equipment with "young forever".		CNC system(can match)

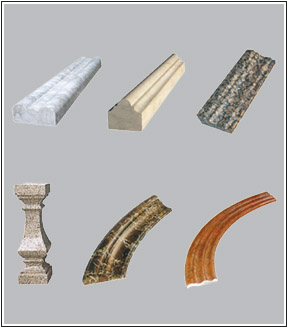

Processed products

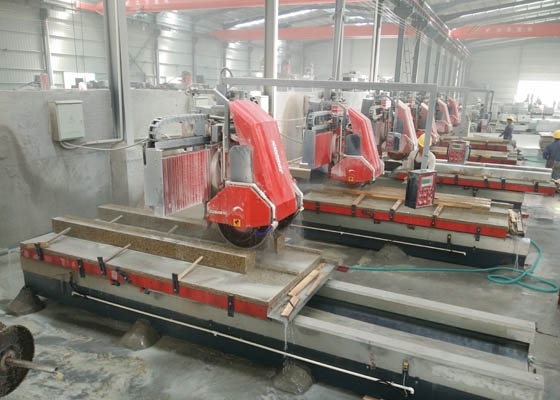

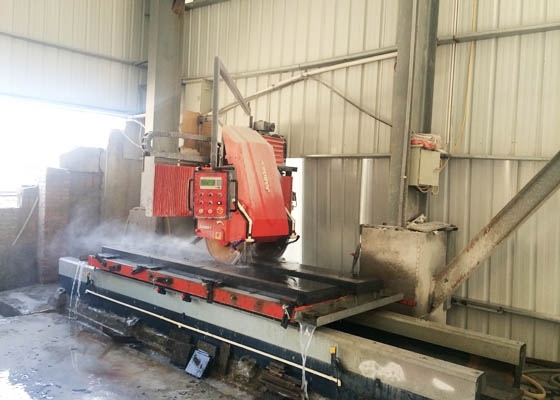

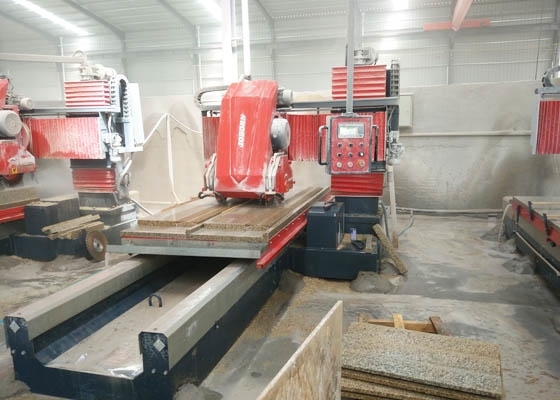

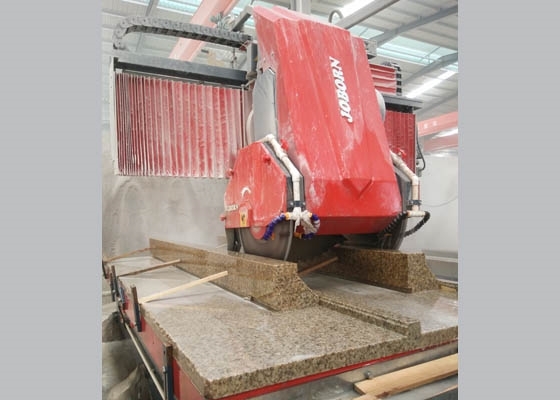

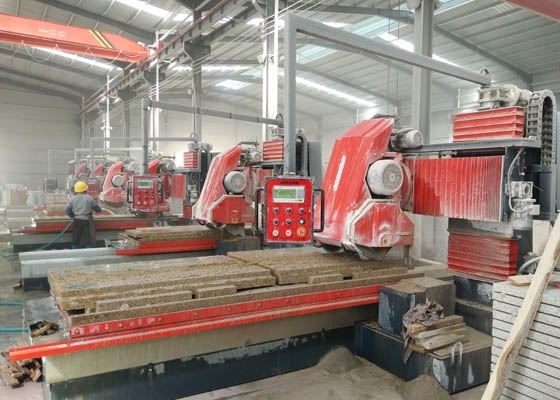

Processing Photos
